LM-PSH01 |
|

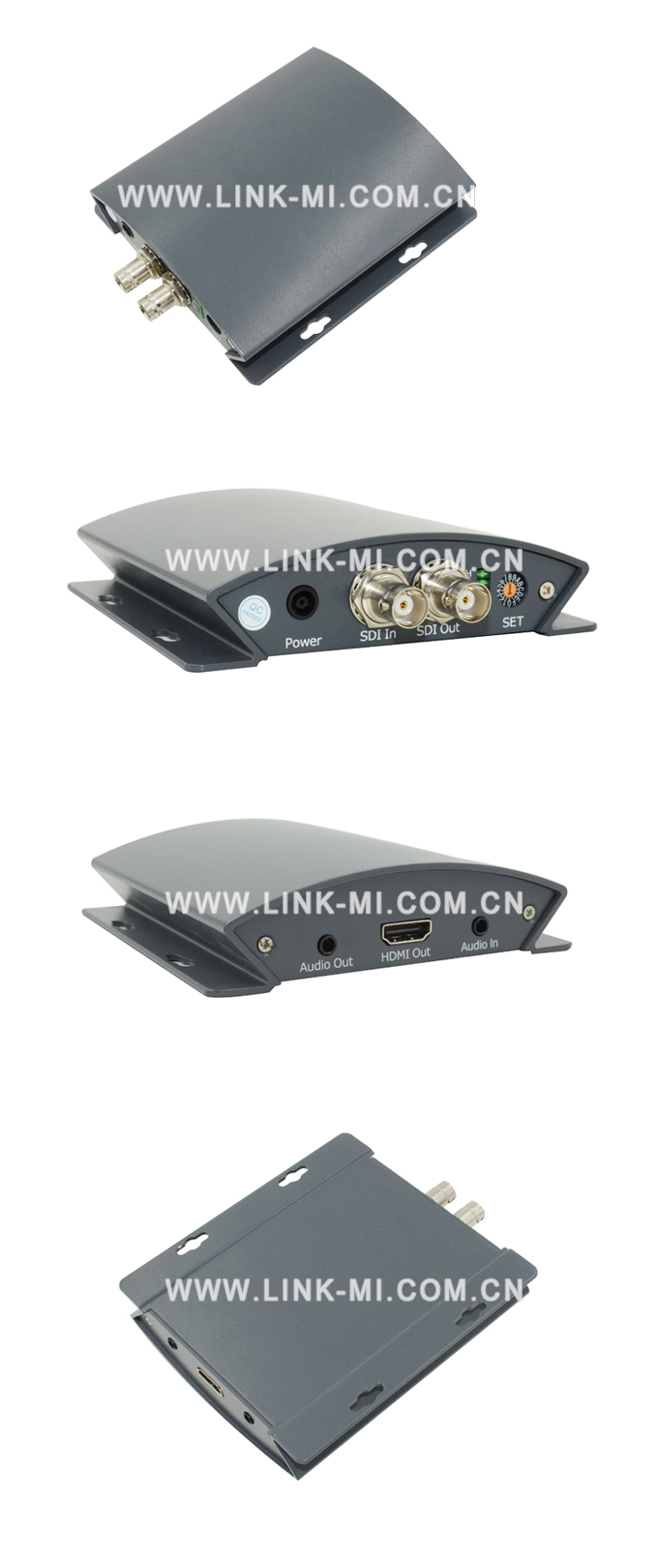

| LINK-MI LM-PSH01 Pro 3G SDI to HDMI Converter Box |
| |
Introduction:

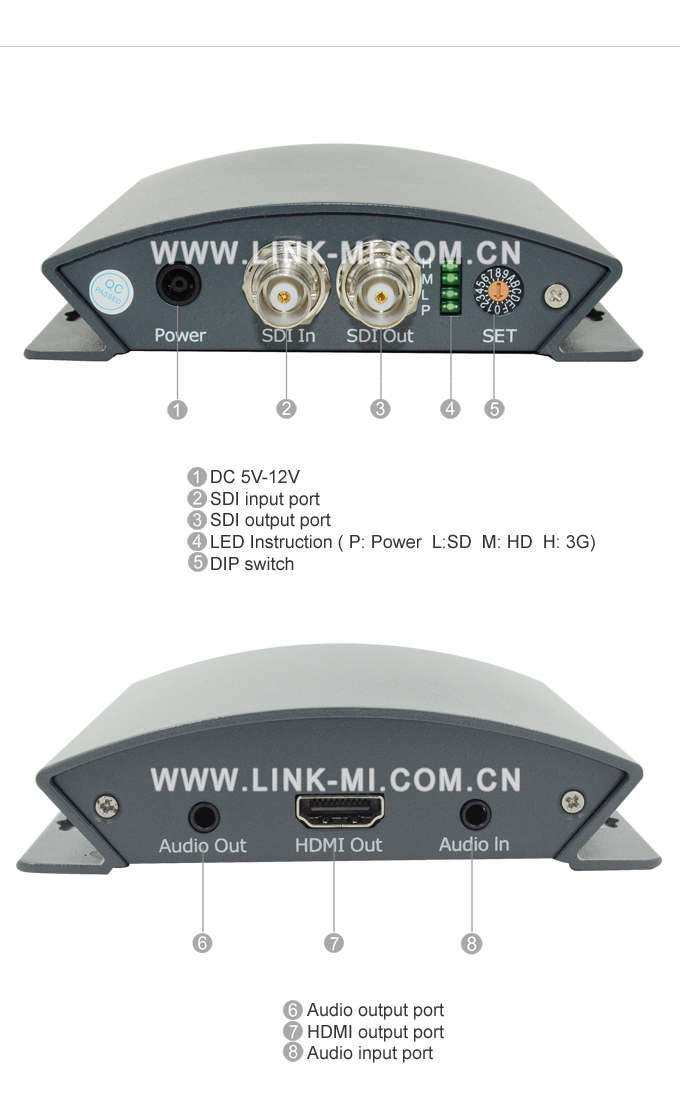

1. Supports 3G/HD/SD SDI Signal Input/Looping Output2. Supports 1080p/1080i/720p/480i/576i Video format3. Supports 1080PSF/ 720P 30/25/24Hz4.1080P/1080I, 720P Frequency conversion output 5. Supports 1080I/1080P to 720P Down-Conversion function6. Support PAL/NTSC/720P to 1080I/1080P Up-Conversion function7. Adaptively SDI Input signal9. SDI embedded audio can be de-embedded10. Support 3G/HD/SD-SDI audio de-embedded to analog stereo audio output11. Support external analog audio inputs embedded in HDMI12. Can be costumed |
|
|
| |
|
|
|
Specification
|
Name |
SDI to HDMI Video Converter Adapter |
|
Model No. |
LM-PSH01 |
|
SDI Input / Output |
Signal |
3G/HD/SD SDI |
|
Connector |
BNC ( IEC169-8 Standard ) |
|
SMPTE |
270Mbps-2.97Gbps |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
Analog Audio Output |
Output Signal |
Analog Stereo Audio |
|
Impedance |
16Ω |
|
Connector |
Earphones |
|
HDMI Output |
Output Signal |
HDMI Signal |
|
Connector |
HDMI |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
100Ω |
|
General Parameters |
Power Supply |
DC 5-12V |
|
Power |
<2W |
|
Dimension(L*W*H) |
141*102*30 mm |
|

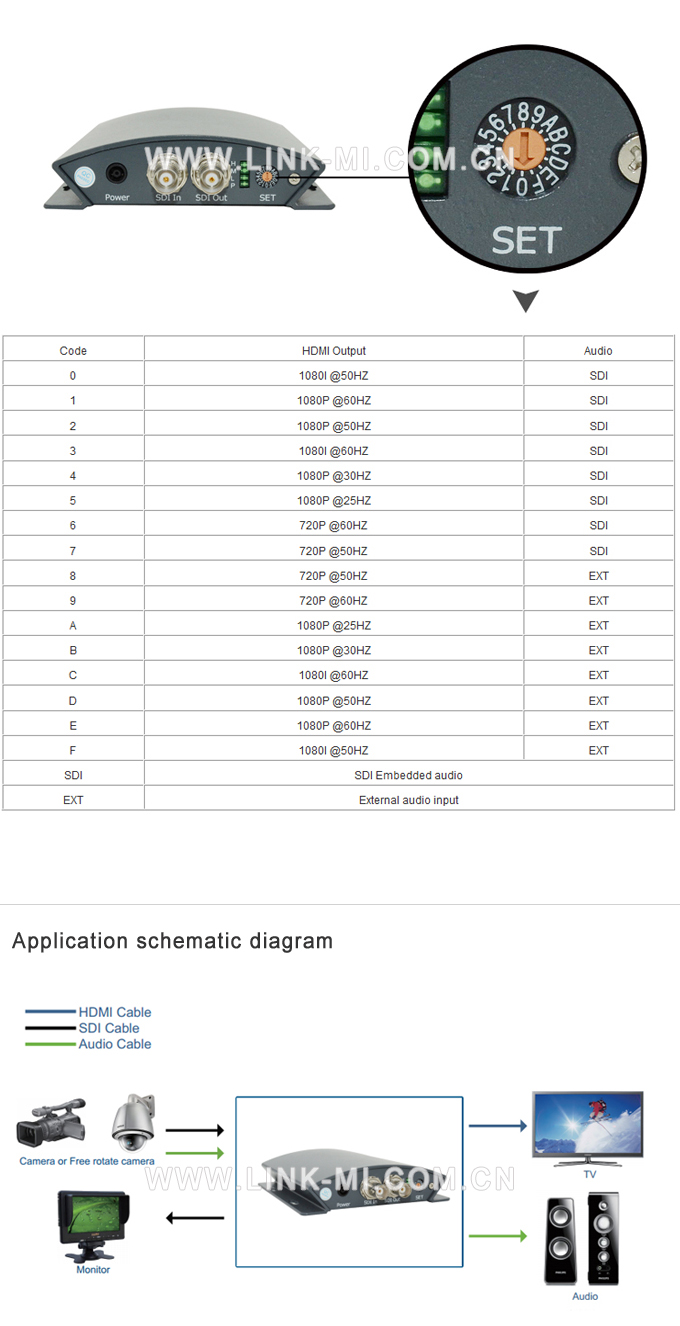

Control |
DIP Switch |
|
Net Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃ |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH | Packing Contents
1. Main Unit. 3G SDI to HDMI Converter
2. 1pcs DC 5V Power Adapter
3. 1pcs User Manual |
 |
|
|
|
|
